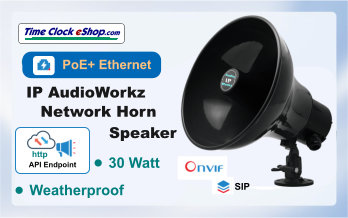

IP AudioWorkz Network Horn Speaker with 117dB

The Network Horn Speaker provide Powerful and Clear sound in all weather conditions with IP65 Rating. Powerful sound coverage for expansive outdoor spaces thanks to the 30 watt Class-D amplifier rated at 117dB.

The Network Horn Speaker is a purpose built network PoE Audio device that connects via Ethernet Cable and can be controlled via API Endpoint commands.

PoE Clocks and Network Speakers are found in public spaces, Businesses, Schools, Meeting Rooms and corporate office buildings.

Network Horn Speaker Datasheet

• 30 Watt 2" Mid Range Driver, this Network Speaker is equipped with a Single Channel Class-D Amplifier
• Max Sound Pressure: 117dB
• Frequency Range: 400Hz - 8KHz
• Audio Codecs supports, G.722, G.711 A-law, G.711 U-Law, Opus
• PoE+ compatible for power and data via network
• Alternatively, connect to network via Ethernet Cable and power via the included 24v Power Supply adapter.
• IP65 rating
• Horn casing is surface treated 1060 Aluminum dark gray color
• Supports DHCP and hostname, and also supports Static IP Address
• SIP Compatible (RFC3261)
• Wall Mounting or Pole Mounting via included Pedestal type Mount with angle adjustment knob
• API Endpoint control for Play and Call functions
• Audio Files - upload up to 5M storage of audio files for ringtone or Play Audio Files via API
• Also supports Smartphone or Tablet Control for the Web Interface

The Web Interface provides programmable functions to be configured, all via a Tablet, Cell Phone or Desktop Browser. Fully equipped with HD Audio, this Network Horn Speaker supports many codecs for your preferrred audio content.

For clients and IT Teams seeking new and cutting edge Network Horn Speakers we have the components for a complete system. Carpenter's Time Systems your trusted partner for Time, Since 1962.

The IP AudioWorkz Network Horn Speaker is affordable and easy to setup for any large indoor facility or any large outdoor campus needing audio coverage.
Finally a Network Horn Speaker with Smart Device Integration for SIP and ONVIF applications, IT teams and Security Integrators alike will appreciate these combined capabilities for Audio in a traditional SIP Paging Speaker or when Video Management Software needs an Onvif compliant audio device for integration.

We support Government, Business and Education requirements for Netwwork Speakers and Scheduled Audio hardware.

For integration as a SIP Paging Speaker (SIP RFC3261), this IP PoE Speaker supports a Primary SIP Account and 2 Secondary SIP Accounts.
Built-in ONVIF Protocol provides standardize interfaces for effective interoperability of IP- based physical security products. If you have an installed a VMS that supports ONVIF, this device can be registered into your supported ONVIF Video Mangement System (VMS) for operation.

SPECIFICATIONS:

• Input Power if powering via electrical: Auto-Detecting single phase power supply, 110v/60Hz, 220v/60Hz and 110v/50Hz, 220v/50Hz...*output 24vDC/2amp
• PoE+ / PoE 802.3at
• Dimensions: (w) 10.87" x (h) 10.89"
• Shipping Weight: approx. 10 lbs.
• Wall Mounting or Pole Mounting:
• Package Includes: IP AudioWorkz Network Horn Speaker with PoE support, Mounting Bracket rotating type

• Wall Mount the Horn Speaker
• Angled Flush Mount for downward directional mounting

The IP AudioWorkz Network Horn Speaker can be purchased from Carpenter's Time Systems and TimeClockeShop.com
